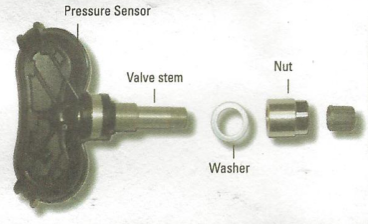

Sensor Mounting Guidelines Fixed Angle TPMS Sensor Mounting Guidelines - Brought to you by EnTire Solutions, LLC   1) Insert the sensor-valve unit through the valve hole of the rim. 2) Hold the sensor feet and the rubber grommet against the rim surface. 3) Insert the nut over the valve stem.  1) Begin to tighten the nut using a 12mm deep socket. Continue to tighten the nut until 35 lbf.in or 4.0 Nm, the recommended final torque setting.
|
